Feeds

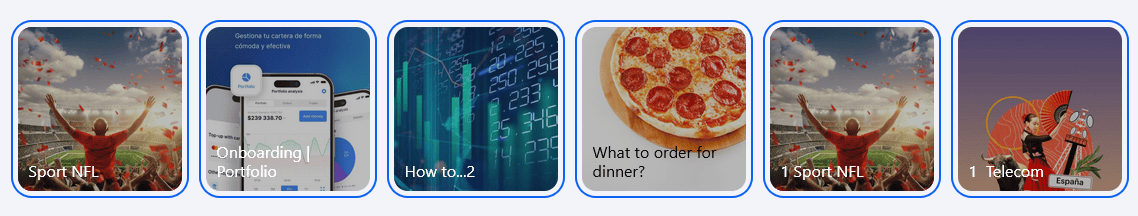

The StoryList component allows you to display a feed of stories on your website. Use this module to integrate interactive stories into your user interface.

Quick start

import { StoryList, StoryManagerConfig, IASContainer, storyManager } from "@inappstory/react-sdk"

export const App = () => {
    const storyManagerConfig: StoryManagerConfig = {
      apiKey: "{projectToken}",
    };

    <IASContainer config={storyManagerConfig}>
        <StoryList feedSlug="default" />
    </IASContainer>
}

Customization

StoriesList options

Variable	Type	Description
card	object	Slider card item options
layout	object	Slider layout options
sidePadding	number	Slider side padding, px. Default 20
topPadding	number	Slider top padding, px. Default 20
bottomPadding	number	Slider bottom padding, px. Default 20
bottomMargin	number	Slider bottom margin, px. Default 17
navigation	object	Slider navigation options
direction	string	Slider direction. Can be horizontal or vertical (for vertical slider). Default horizontal.
autoScrollOnStoryClose	boolean	Auto scroll to invisible card when closing the story reader, px. Default true

Layout

layout property controls the slider.

Variable	Type	Description
height	number | null	Slider total height, px. 0 - for auto height. Default 0
backgroundColor	string	Default transparent
sliderAlign	string	Horizontal align slider inside widget, variants: start, center and end. Default start.

Preview card

Using card property you can fully customize the look of your preview cards.

Variable	Type	Description
title	object	See below
title.display	boolean	Determines whether to show the title or not
title.position	string	Title position. Variants: cardInsideTop (inside card, at top), cardInsideBottom (inside card, at bottom), cardOutsideTop (above the card) and cardOutsideBottom(under the card). Default - cardInsideBottom Note when using the cardOutsideTop or cardOutsideBottom option you must manually specify a slider layout height value.
title.textAlign	string	Text in title horizontal align, variants: start, center and end. Default start.
title.lineClamp	number	Numbers of text lines. Default 4.
title.padding	number | string	Number, px eq for all sides. String - valid css, for customizing each side. Default 10.6
title.font	string	CSS valid font value. Override font. Default normal 1rem InternalPrimaryFont where InternalPrimaryFont - primary font, loaded in project settings.
gap	number	Space between cards, px. Default 10
height	number	Card height, px. Default 178
variant	string	Card style, one of circle, quad, rectangle. Default rectangle
border	object	See below
border.radius	number	Card border radius, px. Default 21
border.color	string	Card border color, valid css. Default black
border.width	number	Card border width, px. Default 2
border.gap	number	Space between card and border, px. Default 5
border.gradient	string	Card gradient border. Default null
boxShadow	string | null	Card box-shadow, valid css value. Default null
dropShadow	string | null	Card drop-shadow, valid css value. Example - 1px 2px 8px rgba(34, 34, 34, 0.3). Default null.
opacity	number	Card opacity. Default null
mask	object | null	Card mask - overlay between card image and title. Default null
svgMask	object | null	Options for card overlay with svg
opened	object | null	Contain keys: border, boxShadow, opacity, mask Apply this values (if current value not null) on card in opened state. Default all values null
coverQuality	string	Quality for stories list covers, variants medium, high. If not set - sdk uses high image quality. Default high.
coverLazyLoading	boolean	Determines whether to use lazy loading of stories list covers. Default false.

Preview card gradient border

You have the ability to set a gradient border for your preview cards.

Parameter	Type	Default	Description
card.border.gradient	string?	transparent	Border background, CSS valid gradient or color
card.border.width	number	2	Card gradient border width, px
card.opened.border.gradient	string?	card.border.gradient	Border background, CSS valid gradient or color in opened card state. The default value is the value set in card.border.gradient
card.opened.border.width	number	2	Card gradient border width in opened card state, px

<StoryList options={{
      card: {
      border: {
        gradient: "linear-gradient(37deg, red, blue)",
        width: 3
      },
      opened: {
        border: {
          gradient: "red",
          width: 3
        }
      }
    }
  }} />

Preview card mask

An overlay between card image and title. Can be a solid color:

<StoryList options={{
    card: {
      mask: {
        color: "rgba(0,0,0,.3)";
      }
    }
}} />

Or a linear gradient

<StoryList options={{
  card: {
    mask: {
        linearGradient: [
          {
            direction: "to bottom",
            points: [
              "rgba(0, 0, 0, 0) 48.74%",
              "rgba(255, 0, 0, 0.6) 75.3%",
              "rgba(255, 0, 0, 0.6) 100%",
            ],
          },
        ];
      }
  }
}} />

Preview card SVG mask

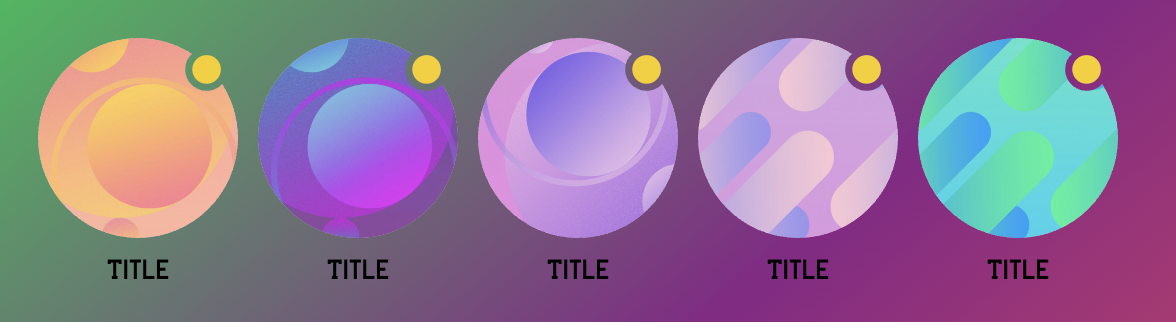

You can use SVG masks to create custom card overlay effects, like in the example below:

---

Options

The svgMask property allows you to configure card and overlay masks.

Property	Type	Description
cardMask	string?	The base card SVG mask. Default: null.
overlayMask	Array<OverlayMaskItem>	An array of overlay masks applied on top of the card. Default: null.

OverlayMaskItem

Each overlay mask item supports the following fields:

Property	Type	Description
mask	string?	The SVG mask source. Default: null.
background	string?	A CSS color or any CSS background option. Default: null.

---

Important Notes ⚠️

• The SVG mask must match the size and shape of the card.
• The transparent part of the mask cuts out the content beneath it.
• Always include the following attributes in the <svg> tag:

  width="100%" height="auto" xmlns="http://www.w3.org/2000/svg"

---

Example

<StoryList options={{
    card: {
      svgMask: {
        cardMask: `<svg width="100%" height="auto" viewBox="0 0 140 140" xmlns="http://www.w3.org/2000/svg">
    <path d="M70 140C108.66 140 140 108.66 140 70C140 56.1 135.95 43.14 128.96 32.25C126.22 35.17 122.32 37 118 37C109.72 37 103 30.28 103 22C103 17.68 104.83 13.78 107.76 11.04C96.86 4.05 83.9 0 70 0C31.34 0 0 31.34 0 70C0 108.66 31.34 140 70 140Z" fill="#B6B6B6"/>
    </svg>`,
        overlayMask: [
          {
            mask: `<svg width="100%" height="auto" viewBox="0 0 140 140" xmlns="http://www.w3.org/2000/svg">
    <path d="M128 22C128 27.52 123.52 32 118 32C112.48 32 108 27.52 108 22C108 16.48 112.48 12 118 12C123.52 12 128 16.48 128 22Z" fill="#B6B6B6"/>
    </svg>`,
            background: "#F2473D",
          },
        ],
      },
    }
}} />

---

Card Mask	Overlay Mask

Navigation options

By default, controls are displayed as round buttons with arrow icons on the edges of the slider. Use the navigation property to control it.

Variable	Type	Description
showControls	boolean	Enable slider controls. Default false
controlsSize	number	Button size, px. Default 48
controlsBackgroundColor	string	CSS valid color value. Default #ffffff
controlsColor	string	CSS valid color value. Default #000000

Custom loader

enum LoadStatus {
    loading = "Loading",
    success = "LoadSuccess",
    fail = "LoadFail"
}

export const App = () => {
    const [loadStatus, setLoadStatus] = useState<LoadStatus>(LoadStatus.loading);

    const onLoadStart = () => {
        console.log("LOADING START");
        setLoadStatus(LoadStatus.loading);
    };

    const onLoadEnd = (loadStatus: StoryListLoadStatus) => {
        if (loadStatus.defaultListLength > 0 || loadStatus.favoriteListLength > 0) {
            setLoadStatus(LoadStatus.success);
        } else {
            setLoadStatus(LoadStatus.fail);
        }

        if (loadStatus.error != null) {
            console.error({
                name: loadStatus.error.name,
                networkStatus: loadStatus.error.networkStatus,
                networkMessage: loadStatus.error.networkMessage
            });
        } else {
            console.log("LOADING SUCCESS", loadStatus);
        }
    };

    return <IASContainer config={{}}>
            <div style={{
                    opacity: 0,
                    height: 0,
                    transition: `opacity 0.5s ease-in-out`,
                    ...(loadStatus === LoadStatus.success ? {
                        height: "auto",
                        opacity: 1
                    } : {})
                }}
            >
                <StoryList feedSlug="default" onLoadStart={onLoadStart} onLoadEnd={onLoadEnd} />
            </div>
    </IASContainer>
}

Reload stories

You can use the story list API to reload the feed. For example, after changing tags:

import { StoryList, IASContainer, StoryListApi } from "@inappstory/react-sdk";

export const App = () => {
    const [tags, setTags] = useState<string[]>([]);
    const storyListRef = useRef<StoryListApi | null>(null);

    useEffect(() => {
        storyListRef.current?.reload() // Reload stories after tags changed
    }, [tags])

    useEffect(() => {
        setTags(['new-tag'])
    }, [])

    return <IASContainer config={{ apiKey: "{projectToken}", tags }}>
        <StoryList ref={storyListRef} feed="default" />
    </IASContainer>

Custom story card

You can customize the appearance of the story card

<StoryList
    options={storyListOptions}
    feedSlug="default"
    storyCardView={(storyCard) => {
            return <div>{storyCard.title}</div>
    }}
/>

StoryCard properties

Field	Type	Description
id	number	Unique identifier of the story
title	string	Title of the story
titleColor	string	Color of the title in HEX format
backgroundColor	string	Background color of the card in HEX format
background	{ color: string; gradient: boolean }	Background configuration of the card
favorite	boolean	Indicates if the story is marked as favorite
like	number	Number of likes the story has received
deeplink	string?	Deeplink URL for navigation when the card is clicked
hideInReader	boolean?	Whether the story should be hidden in the reader
gameInstance	{ id?: string } | undefined	Details of the game instance, if the story is a game
hasAudio	boolean?	Indicates if the story contains audio
isFavoriteCard	boolean	Whether this card represents a favorite stories collection
isUgcCard	boolean	Whether this is a User Generated Content (UGC) card
isOpened	boolean	Whether the story is currently opened/being viewed
videoCoverSrc	string?	URL of the video cover (if available)

StoryCard methods

• getAspectRatio(variant: StoriesListCardViewVariant): number
  Calculates the aspect ratio of the card based on the specified view variant.

• getImageSrcByCoverQuality(coverQuality: StoriesListCardCoverQuality): string | undefined
  Returns the image URL in the requested quality or undefined if not available.

• onClick(index?: number): void
  Handles click interaction with the story card, optionally with the card's position index.

Custom favorite card

You can customize the appearance of the favorite card

<StoryList
    options={storyListOptions}
    feedSlug="default"
    favoriteCardView={({ favoriteStories }) => {
                        return (
                            <div>
                                {favoriteStories.map(favoriteStory => {
                                    const imageSrc = favoriteStory.getImageSrcByCoverQuality("medium");
                                    const height = 100;
                                    return (
                                        <div key={favoriteStory.id}>
                                            {favoriteStory.title}
                                            <img width={favoriteStory.getAspectRatio("rectangle") * height} height={height} src={imageSrc} />
                                        </div>
                                    );
                                })}
                            </div>
                        );
                    }}
/>

Custom story list controls

You can customize story feed controls

<StoryList
    options={storyListOptions}
    feedSlug="default"
    navigationView={(navigation) => {
            return <div>
            <button onClick={navigation.onPrev}>Назад</button>
            <button onClick={navigation.onNext}>Вперед</button>
        </div>
    }}
/>

You can also use default styles:

<StoryList
    options={storyListOptions}
    feedSlug="default"
    navigationView={(navigation) => {
        return <div className={navigation.defaultStyles["stories-list-controls"] + " " + navigation.defaultStyles[navigation.slider.direction]}>
                    <button className={navigation.defaultStyles["control-start"] + " " + navigation.reachStart} onClick={navigation.onPrev}>Назад</button>
                    <button className={navigation.defaultStyles["control-end"] + " " + navigation.reachEnd} onClick={navigation.onNext}>Вперед</button>
                </div>
    }}
/>

Note: You can determine whether the beginning or end of the story feed has reached using the flags reachStart and reachEnd respectively.

The full interface of the passed navigation object is shown below:

Variable	Type	Description
defaultStyles	object	Set of default CSS classes
reachStart	boolean	Takes true when the list reaches its beginning (initial position)
reachEnd	boolean	Takes true when the list reach last story card
onPrev	function	Prev button click handler
onNext	function	Next button click handler
slider.currentPosition	number	Current offset of story list
slider.direction	"horizontal" | "vertical"	Current story list scroll direction
slider.viewport	DOMRect	Current story list viewport

Grid view

The <StoryList> supports a Grid View mode, providing users with a visually engaging way to browse their favorite stories. The Grid View is responsive and adapts to different screen sizes and orientations, ensuring a consistent experience across devices such as desktops, tablets, and smartphones.

To enable the Grid View display mode you need to use the direction property from stories list options. See the example below.

import { StoryList, IASContainer, storyManager } from "@inappstory/react-sdk"

export const App = () => {
   return (
      <IASContainer config={{ apiKey: "{projectToken}" }}>
            <StoryList feedSlug="default" options={{
                direction: "vertical",
                layout: { height: 300 /* Height of story list */ }
            }} />
      </IASContainer>
}

Making Responsive

This guide demonstrates how to create a responsive story list using the @inappstory/react-sdk package by leveraging the useMediaQuery hook. This approach allows you to adjust the appearance of story cards based on the screen size, enhancing the user experience across different devices.

Implementing useMediaQuery

First, let's create the useMediaQuery hook that will be used to detect screen sizes:

import { useState, useEffect } from 'react';

export const useMediaQuery = (query: string) => {
    const [matches, setMatches] = useState(false);

  useEffect(() => {
    const mediaQueryList = window.matchMedia(query);
    const updateMatches = (event: MediaQueryListEvent) => {
      setMatches(event.matches);
    };
    setMatches(mediaQueryList.matches);
    mediaQueryList.addEventListener('change', updateMatches);
    return () => {
      mediaQueryList.removeEventListener('change', updateMatches);
    };
  }, [query]);

  return matches;
}

It's important to note that this is just one way to implement useMediaQuery. There are various other approaches and libraries that offer similar functionality, such as:

• react-responsive: A popular library that provides hooks and components to manage media queries in React.
• useMedia: A hook from the usehooks-ts library that offers a simple and intuitive way to work with media queries.
• Custom Implementations: You can also create your own version of useMediaQuery tailored to specific requirements, potentially adding features like caching, SSR support, or more complex query management.

Feel free to explore these alternatives and choose the one that best fits your project's needs.

Usage Example

Now, we can use the useMediaQuery hook to make the story list responsive:

import React from "react";
import { StoryList, IASContainer } from "@inappstory/react-sdk";
import { useMediaQuery } from './useMediaQuery'; // Import the useMediaQuery hook

export const App = () => {
    // Determine if the device is a desktop based on screen width
    const isDesktop = useMediaQuery('(min-width: 1024px)');

    // Set story list options based on screen size
    const storyListOptions = isDesktop ? {
        card: { height: 178 }
    } : {
        card: { height: 100 }
    };

    return (
        <IASContainer config={{
                apiKey: "{projectToken}" // Replace with your project token
            }}>
            <StoryList
                options={storyListOptions}
                feedSlug="default"
            />
        </IASContainer>
    );
};

Explanation

• useMediaQuery: This custom hook is used to detect the screen size. In this example, it checks if the screen width is at least 1024 pixels (min-width: 1024px), which indicates a desktop device.

• storyListOptions: Depending on whether the device is a desktop or a mobile, the height of the story cards is adjusted. For desktop screens, the card height is set to 178px, while for smaller screens (like mobile devices), it is set to 100px.

Why Use useMediaQuery?

Using the useMediaQuery hook provides a straightforward way to create responsive UIs that adapt to different screen sizes. This ensures that your content is optimally displayed on both desktop and mobile devices, enhancing the user experience.

Events

import { storyManager } from "@inappstory/react-sdk"

storyManager.on("feedImpression", (payload) => console.log(payload));

---

• feedImpression
• visibleAreaUpdated
• clickOnStory

feedImpression

Description: Triggered after stories appear in the viewport.

Payload:

Field	Type	Description
feed	string	Feed name.
stories	array	Array of stories { id: number; title: string; slidesCount: number }.

---

visibleAreaUpdated

Description: Triggered when the visible area of stories is updated in the viewport.

Payload:

Field	Type	Description
feed	string	Feed name.
stories	array	Array of stories { id: number; title: string; slidesCount: number }.

---

clickOnStory

Description: Triggered when a user clicks on a story card in the slider list.

Payload:

Field	Type	Description
id	number	Story ID.
title	string?	Story title.
slidesCount	number?	Number of slides in the story.
feed	string?	Feed name where the story belongs.
source	string?	Story source.
filter	object	Applied filters.
ugcPayload	object	UGC-related payload.
defaultListLength	number	Default list length.
favoriteListLength	number	Favorite list length.
index	number	Index of the story in the list.
isDeeplink	boolean	Whether the story was opened via deeplink.
url	string?	Deeplink URL.

---
